Factory Price Truck Beams – RDL25B-2 CNC Rail Drilling Machine – FIN CNC Detail:

Product Parameters

Rail size range	Bottom width	40～180mm
	Rail height	93～192mm
	Abdominal thickness	12～44mm
	Rail length (after sawing)	6～25m
	Material quality	U71Mn σb≥90Kg/mm² HB380～420PD3 σb≥98Kg/mm² HB380～420
Feeding device	Number of feeding racks	10
	Number of rails that can be placed	12
	Maximum speed of lateral movement	8 m / min
Blanking device	Number of blanking racks	9
	Number of rails that can be placed	12
	Maximum speed of lateral movement	8 m / min
Bit	Diameter range	φ 9.8～φ 37 (carbide bit)
	Length range	3D～4D
	Diameter range	＞φ 37～φ 65 (ordinary high speed steel bit)
Processing requirements	Range of hole height	35～100mm
Processing requirements	Number of holes on each rail	1-4 type
Mobile column (including drill pin power box)	number	2
	Spindle taper hole	BT50
	Spindle speed range (stepless speed regulation)	10～3000r/min
	Spindle servo motor power	2×37kW
	Maximum output torque of spindle	470Nm
	Vertical slide stroke (Y-axis)	≥800mm
	Horizontal drilling feed stroke (Z-axis)	≥ 500mm
	Effective machining stroke of horizontal movement of single column (x-axis)	≥25m
	10. Maximum moving speed of Y and Z axes	12m / min (servo speed regulation)
	Suction cup size (L) × wide × (high)	250×200×120mm (the length of suction cup at both ends is 500mm, and replaceable magnetic pad is placed for clamping in rolling section)
	Working suction	≥250N/cm²
	Cylinder bore × trip	≥Φ50×250mm
	Single cylinder thrust	≥700Kg
	Conveying speed	≤15m/min
	Pressing force	≥1500Kg/set
		The thickness is 20 mm. It can be used with electric permanent magnet sucker and can be replaced
Tool magazine	Quantity	2 sets (one set for each column)
Tool magazine	Capacity	4
Chip removal and cooling	Chip conveyor type	Flat chain
Electrical system (2 sets)	CNC system	Siemens 828D 2 sets
Electrical system (2 sets)	Number of CNC axes	8+2
Tool cooling mode		Internal cooling, MQL micro oil mist cooling
Overall dimension (L) × Wide×(high)		About 65m×9m×3.5m

Details and advantages

1. The precision linear rolling guide and high precision inclined rack on the machine bed are arranged horizontally. The rack is installed between the two guide rails, and the mobile column is installed on the machine bed.

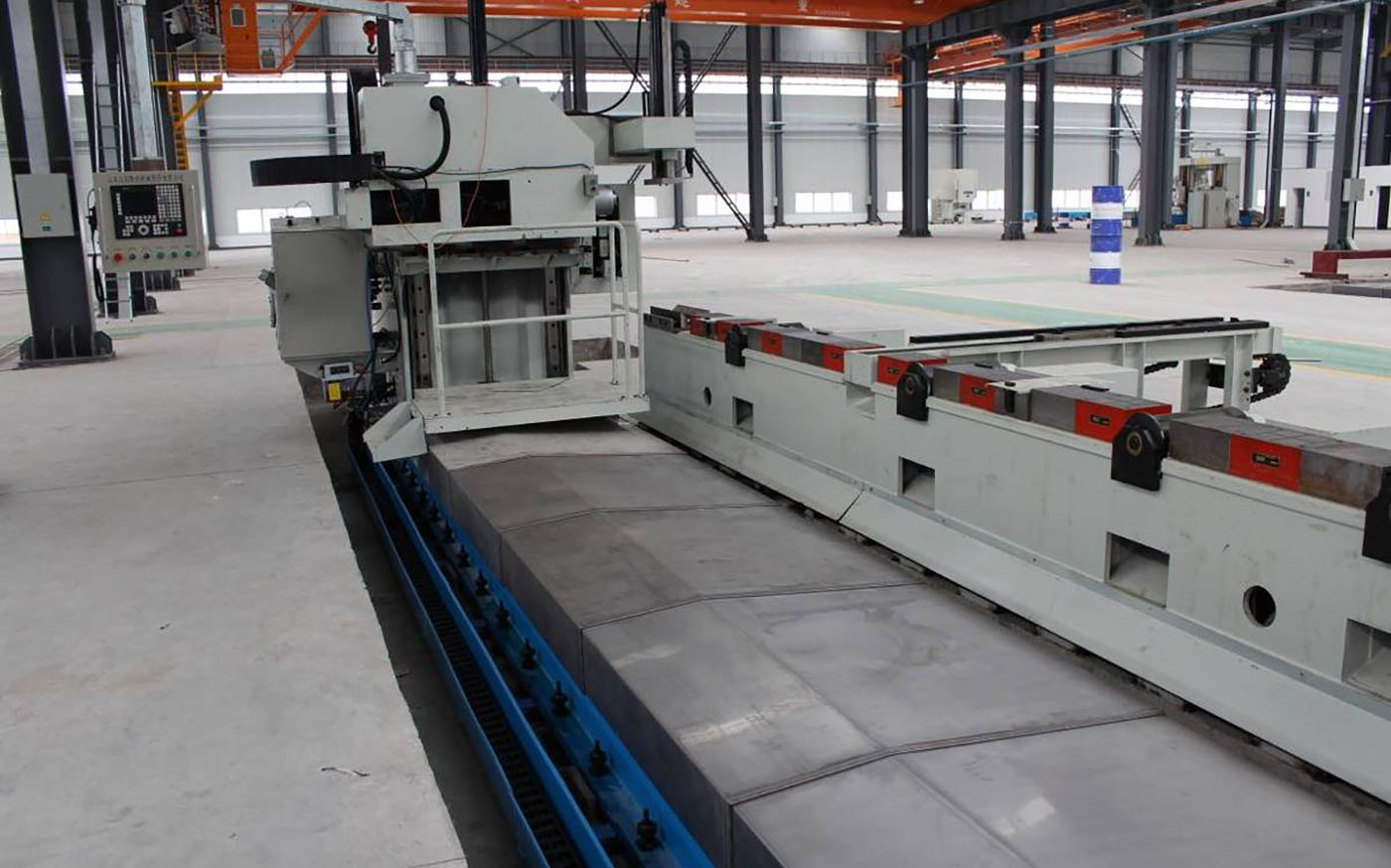

RDL25A CNC Drilling Machine For Rails

2. There are 8 CNC axes and 2 servo spindles in the machine tool. Each CNC axis is guided by precision linear rolling guide. The x-axis is driven by AC servo motor through precision ball screw. Double nut pre-tightening structure is used in the ball screw, which can eliminate the axial back clearance and reduce the elastic displacement caused by the axial force. There is no clearance in the movement, and the host machine has a separate magnetic grid ruler detection system in the X and Y axis movement of the bed, which can ensure the positioning accuracy of coordinate movement;

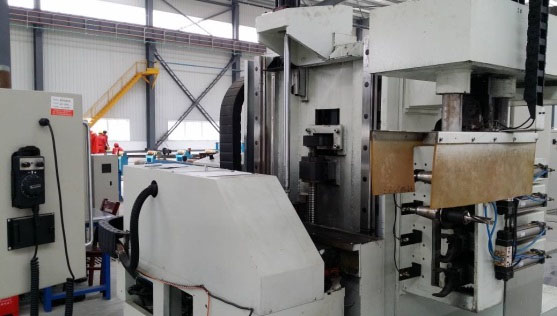

RDL25B-2 CNC Rail Drilling Machine

3. The machine has the function of laser end Searching and locating the origin, which is convenient for tool processing and improving the processing efficiency. The repeatability of laser alignment device is less than 0.2mm. It also has the function of rail length detection, which can detect both ends of the rail through the laser switch, so as to detect the length of the rail. It can recheck the incoming materials and reduce errors.

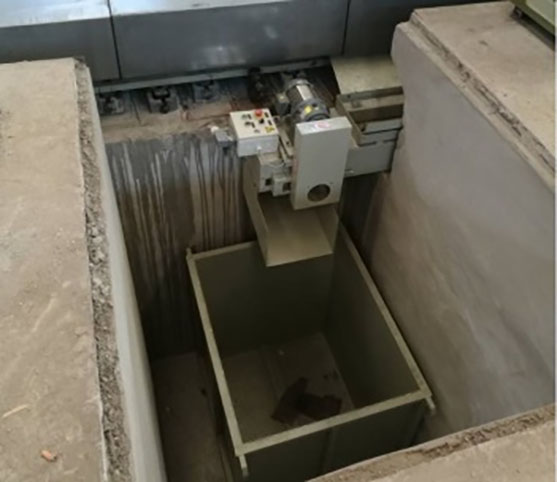

RDL25B-2 CNC Rail Drilling Machine1

4. The drilling tool is a molding tool. The drilling and front chamfering are completed at one time. The tool is made of Transposition carbide blade, and the spindle is cooled by air mist. There is a chamfering head on the reverse side for chamfering, and the chamfering tool is also of carbide blade type structure. This chamfering tool has a large chamfering range and does not need to change the tool during processing.
5. Siemens 828d CNC system is used in the CNC system, which can monitor the drilling process in real time. It can recognize the two-dimensional code and call the machining program.

Key outsourced components list

NO.	Name	Brand	Country
1	CNC system	Siemens	Germany
2	Servo motor and drive	Siemens	Germany
3	Spindle servo motor and drive	Siemens	Germany
4	Precision spindle	KENTURN	Taiwan, China
5	Ball screw pair	NEFF	Germany
6	Linear guide pair	HIWIN/PMI	Taiwan, China
7	Drag chain	IGUS/JIAJI	Germany / China
8	Magnetic ruler	SIKO	Germany
9	Precision reducer	APEX	Taiwan, China
10	Precision gear rack pair	APEX	Taiwan, China
11	Hydraulic valve	ATOS	Italy
12	Oil pump	JUSTMARK	Taiwan, China
13	Low voltage electrical components	Schneider	France
14	Laser alignment device	SICK	Germany

Note: The above is our standard supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
