Excellent quality China PP123 FINCM CNC Hydraulic Steel Plate Punching Machine For Sheet Metal

Product Application Introduction

CNC hydraulic plate punching machine, mainly used for small and medium-sized specifications in steel structure, electric power tower and automobile industries
For the punching of the plate, the plate can be punched after one clamping to ensure the positional accuracy of the hole, with high work efficiency and automation, especially suitable for multi-variety processing.

Service and guarantee.


  • products details photo1
  • products details photo2
  • products details photo3
  • products details photo4
by SGS Group
Employees
299
R&D staffs
45
Patents
154
Software ownership (29)

Product Detail

Product Process Control

Clients and Partners

Company profile

Quality First,and Customer Supreme is our guideline to provide the best service to our customers.Nowadays, we are trying our best to become one of the best exporters in our field to meet customers more need for Excellent quality China PP123 FINCM CNC Hydraulic Steel Plate Punching Machine For Sheet Metal, We cordially welcome buyers from at home and abroad to hitch us and cooperate with us to get pleasure from a much better upcoming.
Quality First,and Customer Supreme is our guideline to provide the best service to our customers.Nowadays, we are trying our best to become one of the best exporters in our field to meet customers more need for China Metal Punching Machine, Sheet Metal Punching Machine, With the development and enlargement of mass clients abroad, now we now have set up cooperative relationships with many major brands. We have now our own factory and also have many reliable and well-cooperated factories in the field. Adhering to the “quality first, customer first, We are provideing high-quality, low-cost merchandise and first-class service to customers. We sincerely hope to establish business relationship with customers from all over the world on the basis of quality, mutually benefit. We welcome OEM projects and designs.

Product Parameters

NO.

Item name

Parameter

1

Punching force

1200KN

2

Max process dimension

1500×775mm

3

Plate thickness

5~25mm

4

Number of punch and mark modulus

3

5

Max punching diameter

φ30mm

For Q235 steel σb≤420MPa φ30×25mm  (diameter* thickness)

For Q420 steel σb≤680MPa φ30×25mm (diameter* thickness)

6

Marking force

1000KN

7

Characters size:

14×10mm

8

Number of characters in a group

16

9

Minimum hole margin

25mm

10

Number of clamp

2

11

System pressure

24 Mpa

12

Low pressure

5.5Mpa

13

Air pressure

0.5Mpa

14

Hydraulic pump motor power

22KW

15

Number of CNC axis

2

16

X、Y movable speed

18 m/min

17

X axis servo motor power

2 KW

18

Y axis servo motor power

2KW

19

Cooling method

Water cooling

20

Total power

26KW

21

Machine dimensions(L*W*H)

3600*2800*1870mm

22

Main machine weight

7500kg

Details and Advantages

1. The PP123 CNC hydraulic punching machine has a punching force of up to 1200KN. It has three die positions and can be equipped with three sets of punching dies, or only two sets of punching dies and a character box. The die is easy to replace and the print is clear.
2. The bed of the heavy-duty machine adopts a high-quality steel plate welded structure. After welding, the surface is painted,
Thereby, the surface quality and anti-rust ability of the steel plate are improved. The bed welding parts are heat-aged to minimize welding stress. As a result, the reliability and durability of the machine are improved.

3. Both X and Y axis use precision linear guide rails, which have large load, high precision and long service life of the guide rails.
And can maintain the high precision of the machine for a long time.
4. Use the combination of centralized lubrication and distributed lubrication to lubricate the machine, so that the machine can be lubricated. Always in good working order.

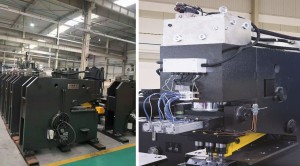

CNC Hudraulic Punching and Drilling Machine6

Key Outsourced components List

NO

Name

Brand

Country

1

AC servo motor

Delta

Taiwan(China)

2

PLC

Delta

3

Electromagnetic unloading valve

ATOS/YUKEN

Italy / Taiwan(China)

4

Relief valve

ATOS/YUKEN

5

Electromagnetic directional valve

JUSTMARK

Taiwan(China)

6

Bus bar

SMC/CKD

Japan

7

Air valve

SMC/CKD

8

Cylinder

SMC/CKD

9

Duplex

AIRTAC

Taiwan(China)

10

Computer

Lenovo

China

Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.Quality First,and Customer Supreme is our guideline to provide the best service to our customers.Nowadays, we are trying our best to become one of the best exporters in our field to meet customers more need for Excellent quality China PP123 FINCM CNC Hydraulic Steel Plate Punching Machine For Sheet Metal, We cordially welcome buyers from at home and abroad to hitch us and cooperate with us to get pleasure from a much better upcoming.
Excellent quality China Metal Punching Machine, Sheet Metal Punching Machine, With the development and enlargement of mass clients abroad, now we now have set up cooperative relationships with many major brands. We have now our own factory and also have many reliable and well-cooperated factories in the field. Adhering to the “quality first, customer first, We are provideing high-quality, low-cost merchandise and first-class service to customers. We sincerely hope to establish business relationship with customers from all over the world on the basis of quality, mutually benefit. We welcome OEM projects and designs.
