Product Parameters

Details and advantages

1. The maximum drilling diameter of the machine tool is 50mm, the maximum drilling plate thickness is 200mm, and the maximum plate size is 3000x3000mm.

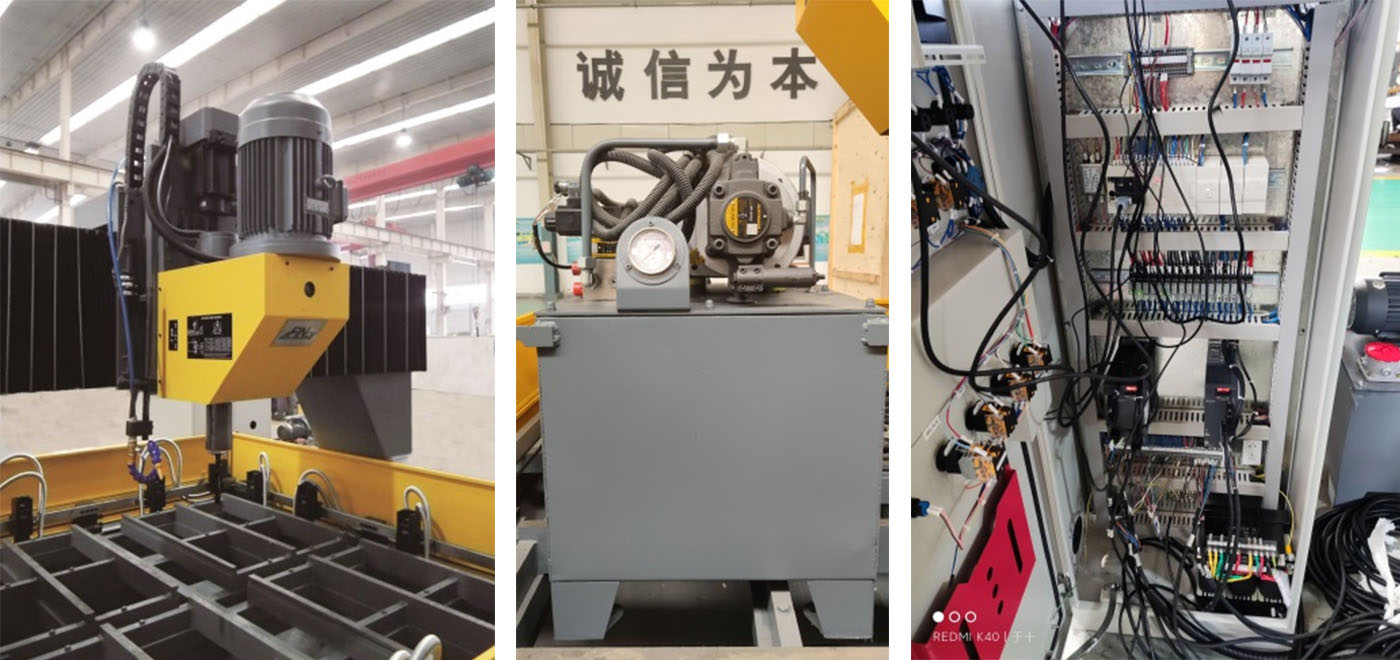

2. The machine tool is equipped with two independent servo feed slide drilling power heads.
3. The coordinate position of the hole can be quickly positioned at the speed of 8m / min, and the auxiliary time is relatively short.
4. The spindle motor of drilling power head adopts stepless frequency conversion speed regulation, and the feed speed adopts servo stepless speed regulation, which is convenient to operate.

5. After the drilling feed stroke is set, it has the automatic control function.
6. The taper hole of the spindle is Morse No. 4, and is equipped with Morse No. 4 / 3 reducer sleeve, which can install drill bits with different diameters.
7. The gantry mobile structure is adopted, the machine covers a small area and the structural layout is reasonable.

8. The X-axis movement of gantry adopts high bearing capacity linear rolling guide rail pair guidance, which is flexible.
9. The machine is equipped with a spring center tool setting device, which can easily identify the position of the plate.

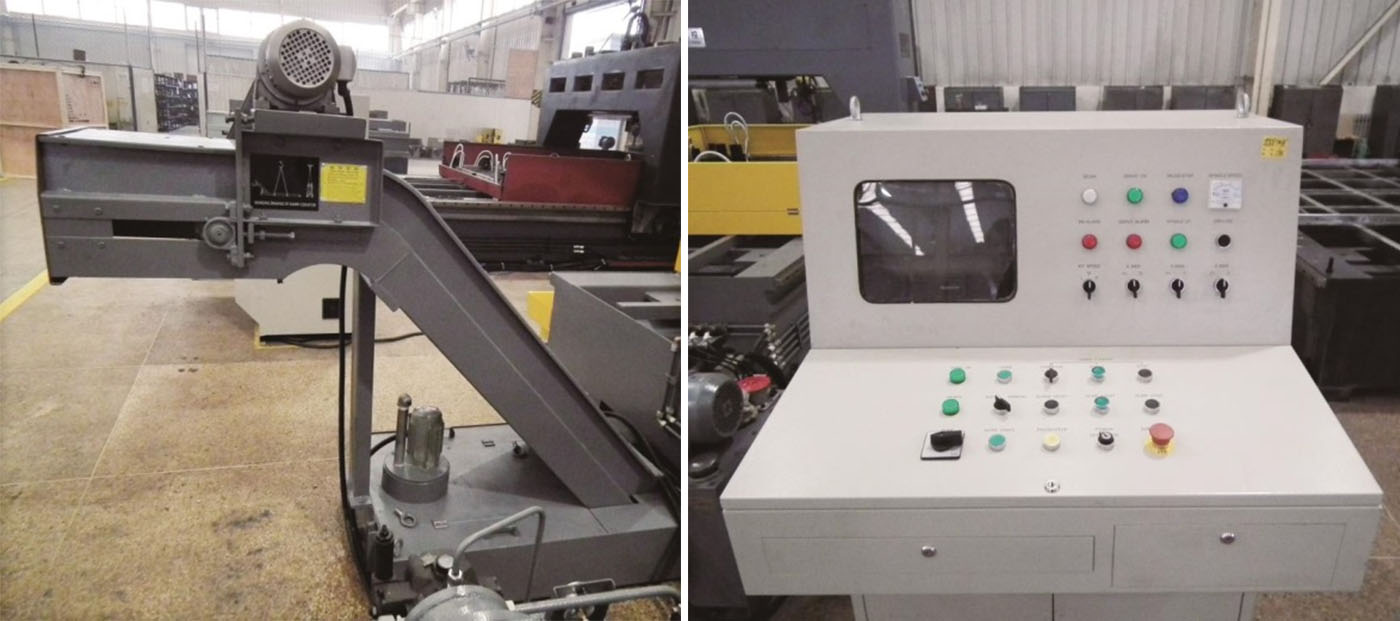

10. The control system adopts the upper computer programming software independently developed by our company and matched with PLC programmable controller, with a high degree of automation.
11. The machine guide rail and lead screw nut are equipped with automatic lubrication device.
12. X-axis guide rail adopts stainless steel telescopic protective cover, both sides of y-axis guide rail adopt flexible protective cover, and waterproof baffle is added around the workbench.

Key outsourced components list

Note: The above is our standard supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
