OEM/ODM China Angle Steel Tower - BS1250 FINCM Steel Structure Double Column CNC H-Beam Channel Band Saw Machine – FIN CNC

Product Parameter

Details and advantages

1、The band saw blade rotates and adopts variable frequency stepless speed change, which can be adjusted conveniently according to different sawing materials.

2、The sawing feed adopts hydraulic control to realize stepless feed.

3、The sawing blade feed adopts double column guide, with good rigidity, high precision and smooth sawing section.

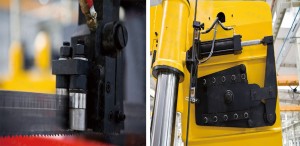

4、The band saw blade adopts hydraulic tension, which makes the saw blade maintain good tension in rapid movement, prolongs the service life of the saw blade, and effectively solves the problem of tension mutation.

5、There is a mechanism of sudden power-off and manual locking in the sawing process to prevent the saw frame from sliding down.

6、There is a set of manual fine adjustment device in front and back of the saw blade, which can accurately cut the head, middle and tail of the beam and improve the cutting accuracy.

7、It has the function of laser alignment, and can accurately locate the sawing position of Beam.

8、It has the function of turning the saw body from 0 ° to 45 °. The Beam doesn’t need to rotate, but the whole machine can complete the oblique cutting of any angle between 0 °and 45°.

9、The product can be combined with the SWZ series 3D drilling machine and BM series lock milling machine to form a flexible production line of secondary NC machining equipment for steel structure.

Key outsourced components

Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
