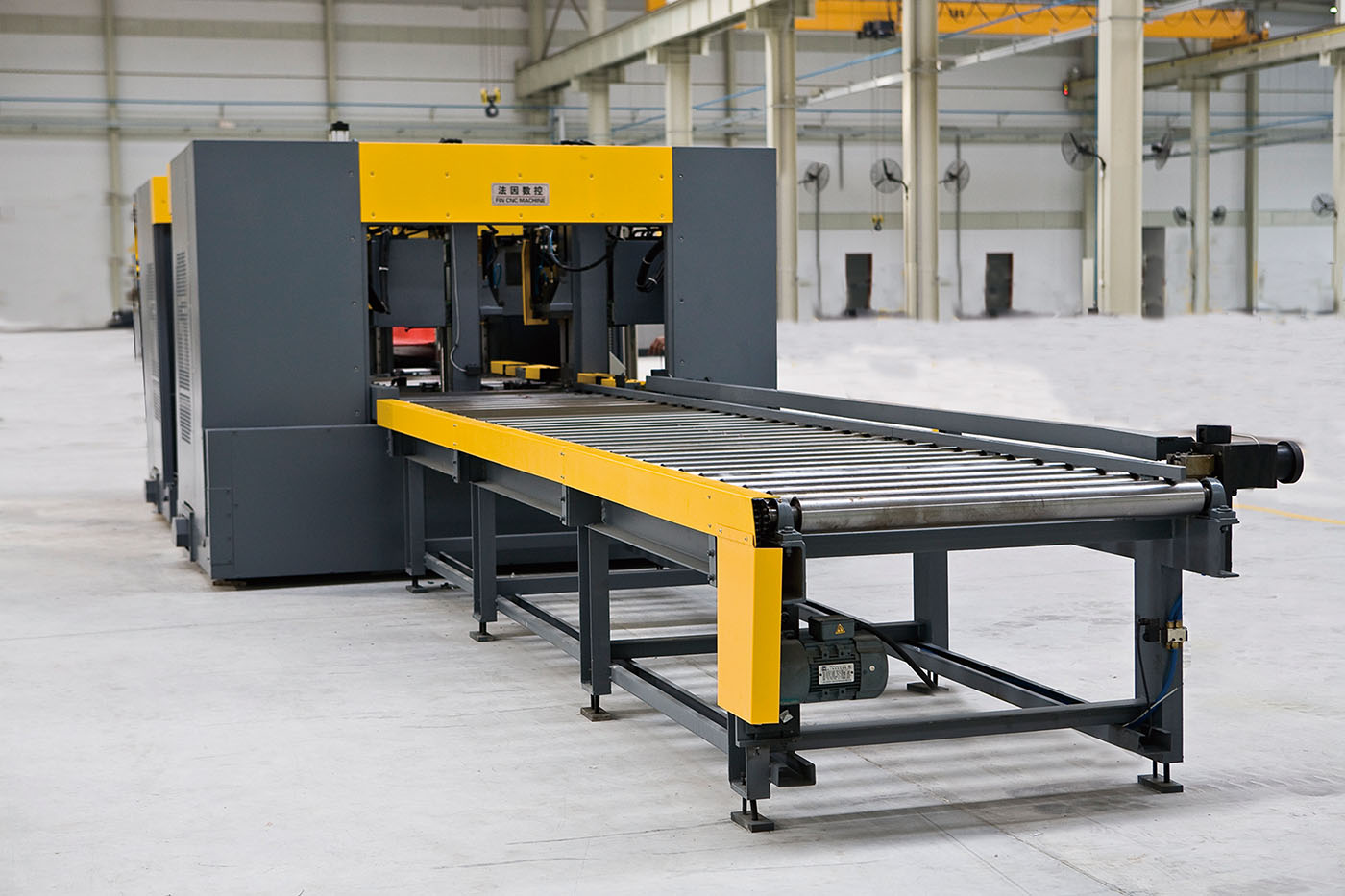

OEM/ODM China Angle Steel Tower - CNC Beveling Machine for H-beam – FIN CNC

Product Parameters

BM15-12/BM38-12

Details and advantages

1) Because of the use of CNC longitudinal sliding table, the locking process of beam with inclined end face can be completed at one time.
2) Frame structure is adopted for the frame, with reasonable structure design and strong stability.
3) The milling head adopts top-down milling mode to reduce vibration and improve tool life.

4) The beveling head is guided by a rectangular guide made of ductile iron, which has good wear resistance and ensures smooth milling.
5) The feed of milling head is controlled by frequency converter with stepless speed change. Each axis is controlled by decelerating motor and encoder, with accurate positioning.
6) The Beam is clamped by hydraulic pressure, and the wing plate and web plate of the beam are compressed by multiple oil cylinders to ensure smooth milling.

7) Equipped with centralized lubrication system, the key parts of the timing and quantitative lubrication.
8) It is easy to operate with HMI touch screen. It has the function of automatic setting of cutting parameters, which can automatically change the amount of milling and greatly improve the productivity.
9) The frequency conversion roller table is used for feeding, which can stably transport.
10) The machine is an automatic production line. The feeding channel, main machine, discharging channel and other devices constitute an automatic line, which can automatically and continuously mill the same type of H-beam.

Key Outsourced Components List
