BHD1005A/3 FINCM CNC three side high Speed Drilling Machine For H Beam

Product Application Introduction

This machine is mainly used for drilling H-beam, U channel,I beam and other beam profiles.

The positioning and feeding of the three drilling headstock are all driven by servo motor, PLC system control, CNC trolley feeding。

It has high efficiency and high precision. It can be widely used in construction, bridge structure and other steel fabrication industries.

Service and guarantee.


  • products details photo1
  • products details photo2
  • products details photo3
  • products details photo4
by SGS Group
Employees
299
R&D staffs
45
Patents
154
Software ownership (29)

Product Detail

Product process control

Clients and Partners

Company profile

Product Parameter

NO.

Item name

Parameters

1

Machining range

H-beam

Section height H: 150-1000mm

Flange width B: 75 ~ 500mm

Maximum thickness of material

60mm

2

Drilling power box

Quantity

3

Max. drilling diameter

Cemented carbide ¢ 30mm

High speed steel ¢ 40mm

Spindle taper hole

BT40

Spindle motor power

3×11KW

Spindle speed (stepless speed regulation)

0~2000r/min

3

CNC axis

Quantity

7

Servo motor power of fixed side, moving side and middle side feed shaft

3×2KW

Fixed side, moving side, middle side, moving side positioning axis servo motor power

3×1.5KW

Moving speed of three positioning CNC axes

0~10m/min

Moving speed of three feed CNC axes

0~5m/min

Width detection stroke

900mm

Web detection stroke

290mm

4

Feeding trolley

Feeding trolley servo motor power

5 KW

Maximum feeding speed

20m/min

Maximum feeding weight

8T

5

Spray cooling system

Number of nozzles

1

6

Compressed air pressure

0.5Mpa

7

Cooling mode

Internal cooling + external cooling

8

Dimension of main machine (L x W x H)

About 5.6×1.6×3.3m

9

Machine weight

About 7000Kg

Details and advantages

1 There are six CNC axes on the three sliding tables, including three feed CNC axes and three positioning CNC axes. Each CNC axis is guided by precision linear rolling guide and driven by AC servo motor and ball screw, which ensures its positioning accuracy.

2 Each spindle box can be drilled separately or at the same time.

3 Equipped with BT40 taper hole, it is convenient for tool changing, and can be used to clamp twist drill and cemented carbide drill. The performance of drilling and tool changing is stable, and it has a wide range of applications. The speed can be continuously variable in a large range to meet a variety of speed requirements。

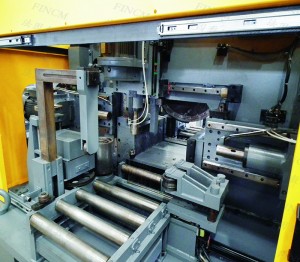

4 The material is fixed by hydraulic clamping. There are five hydraulic cylinders for horizontal clamping and vertical clamping respectively.

部件6
部件2

5 In order to meet the processing of multiple hole diameters, the machine is equipped with three in-line tool magazine, each unit is equipped with a tool magazine, and each tool magazine is equipped with four tool positions.

6 The machine is equipped with material width detection and web height detection device, which can effectively compensate the deformation of the material and ensure the machining accuracy;

7 The machine adopts the trolley feeding, and the CNC clamp feeding mechanism.

8 Each spindle box is equipped with its own external cooling nozzle and internal cooling joint, which can be selected according to the needs of drilling.

key outsourced components

NO.

Name

Brand

Country

1

Spindle

Kenturn

Taiwan, China

2

Linear rolling guide rail pair

HIWIN/CSK

Taiwan, China

3

Hydraulic pump

Justmark

Taiwan, China

4

Solenoid hydraulic valve

ATOS/Yuken

Italy / Japan

5

Servo motor

Siemens / MITSUBISHI

Germany / Japan

Note: The above is our fixed supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
