New Arrival China Tower Steel - PD30B CNC Drilling Machine for Plates – FIN CNC Detail:

Product Parameters

Item	Name	Value
Plate Size	Thickness	Maximum 80mm
	Width x Length	1600mm×3000mm　　 (for One piece of plate)
		1500mm×1600mm　　 ( for Two pieces of plate)
		800mm×1500mm (for Four pieces of plate)
	Drilling bit Diameter	φ12-φ50mm
	Speed adjustment type	Frequency Inverter stepless speed change
	RPM	120－560r/min
	Feeding	Hydraulic stepless speed adjustement
Plate Clamping	Clamping thickness	Min. 15 ~ Max. 80mm
	Clamping cylinder Nos.	12 pieces
	Clamping force	7.5KN
Cooling	Method	Compulsory recycling
Motor	Spindle Motor	5.5kW
	Hydraulic Pump Motor	2.2kW
	Scrap Removal Motor	0.4kW
	Cooling Pump Motor	0.25kW
	X Axis Servo Motor	1.5kW
	Y Axis Servo Motor	1.0kW
Machine Size	L×W×H	About 5560×4272×2855mm
Weight	Main machine	About 8000 Kg
Travel	X Axis	3000mm
Travel	Y Axis	1600mm
Maximum Positioning speed	8000mm/min

Machine’s Supply Range

1. Machine Frame, 1 set
2. Gantry, 1 set
3. Position Exchangeable Worktable (Dual worktable), 1 set
4. Drilling Spindle, 1 set
5. Hydraulic System, 1 set
6. Electrical Control System, 1 set
7. Centralized Lubrication System, 1 set
8. Scrap Removal System, 1 set
9. Cooling System, 1 set
10. Quick change chuck of drilling tool, 1 set

Details and advantages

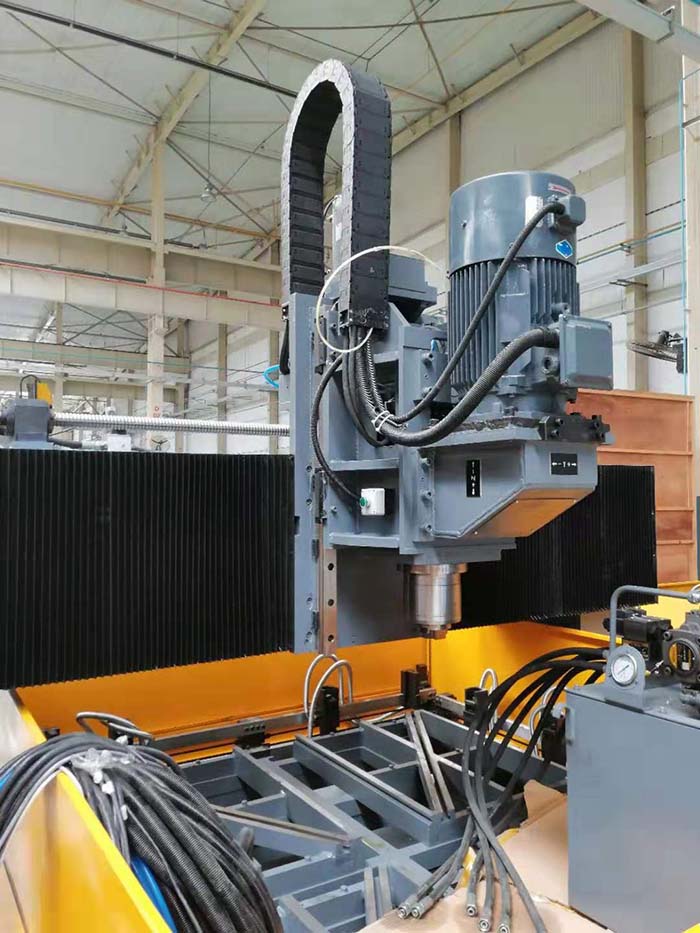

1. Spindle Hydraulic automatic control stroke, which is our company’s patent technic know-how. It can automatically realize fast feeding- work feeding- fast return back, no need setting any parameters before operation.

PD16C Double Table Gantry Mobile CNC Plane Drilling Machine5

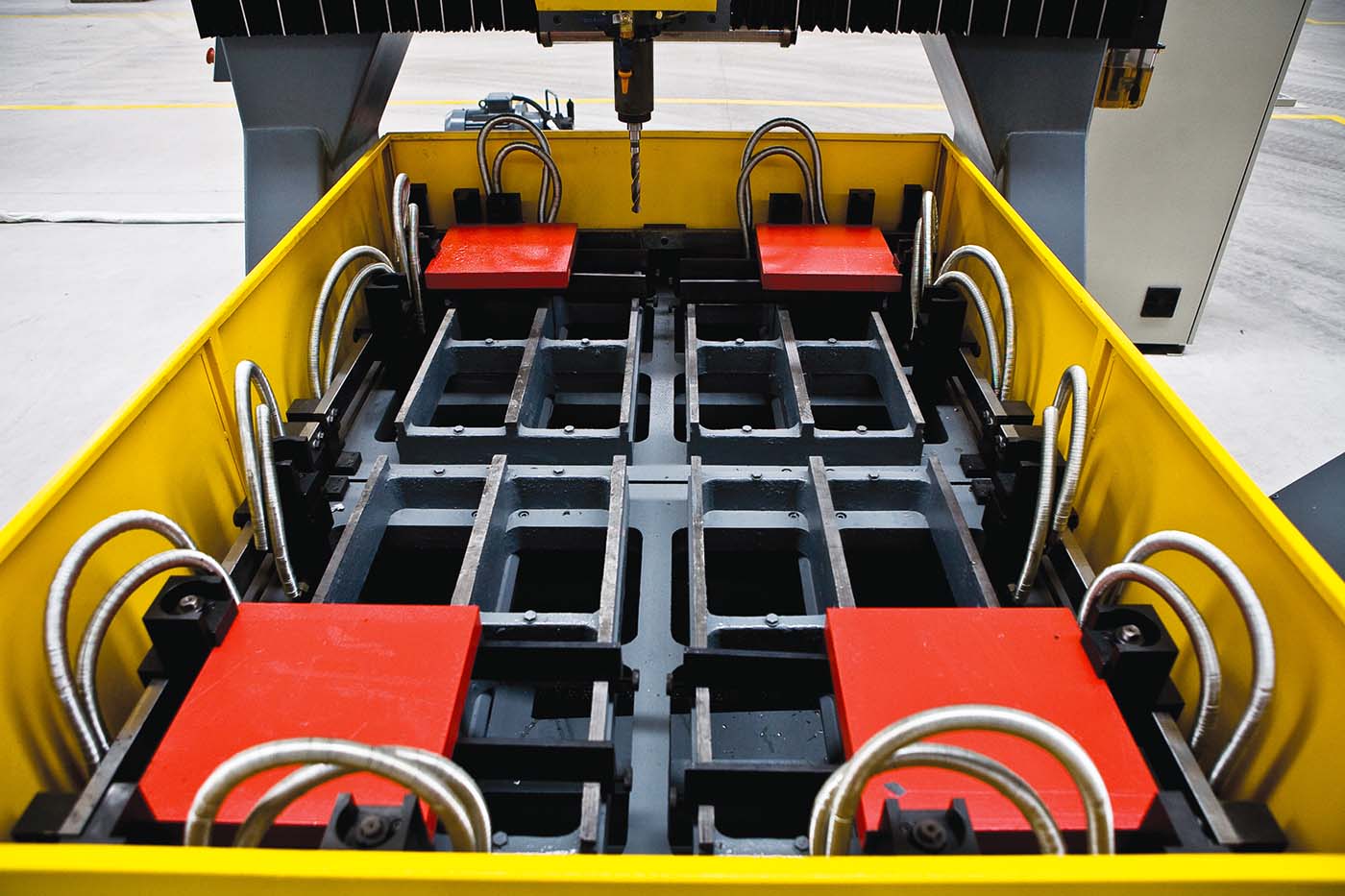

2. Position Exchangeable Worktable (Dual worktable) One work table can continually working while the other work table in the progress of uploading/downloading the material, which can greatly save time and improve production efficiency.

PD16C Double Table Gantry Mobile CNC Plane Drilling Machine6

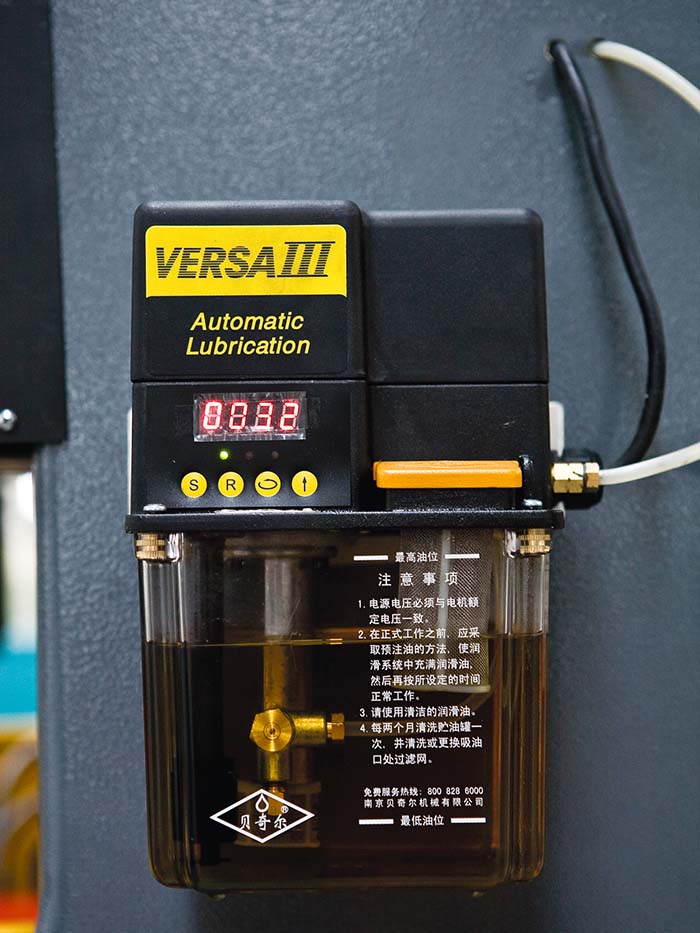

3. Centralized Lubrication System Key components can be well lubricated, to secure the machine’s good performance and long lifetime.
4. Cooling system There is coolant filter recycling-use device.
5. PLC control system The upper computer programming software is designed by FIN CNC company ourselves, it’s very easy and convenient to operate, with automatic warning function.

Key outsourced components list

No.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos/YUKEN	Italy/Japan
4	Servo motor	Mitsubishi	Japan
5	Servo driver	Mitsubishi	Japan
6	PLC	Mitsubishi	Japan
7	Computer	Lenovo	China

Note: The above is our standard supplier. It’s subject to be replaced by same quality components of other brand if the above supplier can’t supply the components in case of any special matter.
